Network Topology

Computer Network Topology:

Physical Layout of systems connected in the network are called computer network topology.

Ex- BUS Topology, Ring Topology, Mesh Topology, Star Topology etc.

Bus Topology:

In Bus topology all devices are connected to a single cable or backbone. It supports half duplex communication. A break at any point destroy the entire network.



BUS Topology

Ring Topology:

In Ring topology each devices connected with it's neighbour by creating a loop or forming a loop.

Failure of the single device and break a cable at any point in the network the total will be stop communicating.



Ring Topology

Mesh Topology:

In mesh topology each devices are connected to all other devices.

Mesh Topology

Star Topology:

The most common used topology is star topology. It consist of devices which can be either switch or Hub.

The devices connected to the various ports or the centralised port.

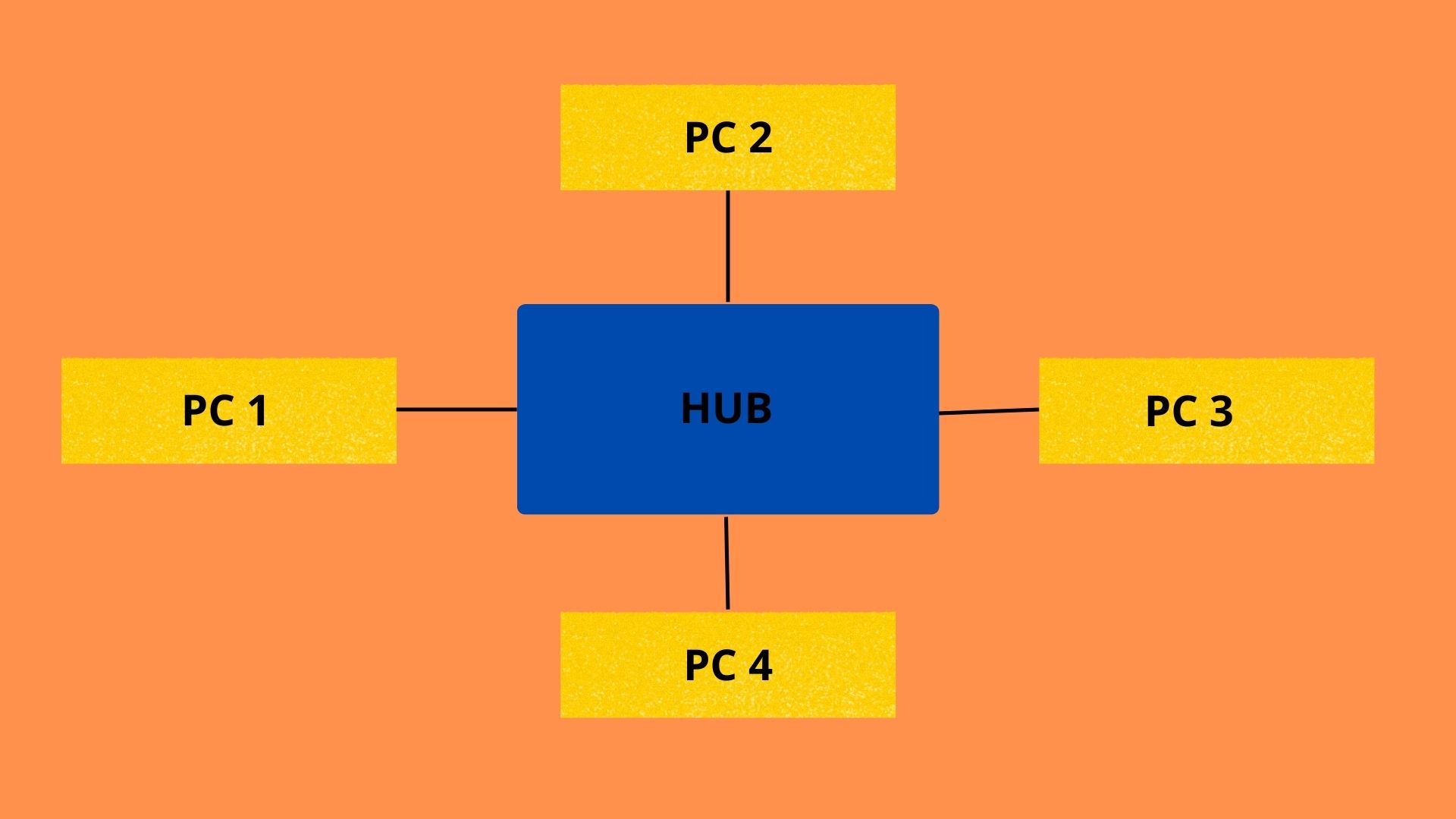

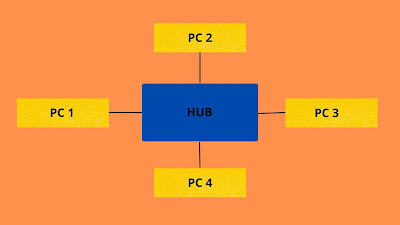

STAR Topology
